Variable-Vane Turbocharger Nozzles: Optimizing Engine Performance
Explore how the variable-vane turbocharger nozzle adjusts boost pressure to optimize engine performance across different speed and load conditions.
In the world of modern engines, the variable-vane turbocharger nozzle plays a fundamental role in advanced turbocharger design. This system is essential for guaranteeing optimal boost pressure at both low and high engine speeds. The ability to adjust the speed and direction of exhaust gas flow lets the turbocharger operate more efficiently, translating into a significant increase in engine power and improved fuel consumption. In this post, we’ll explain how the variable-vane nozzle works, its impact on engine performance, and why it’s a key technology in turbocharged engines.

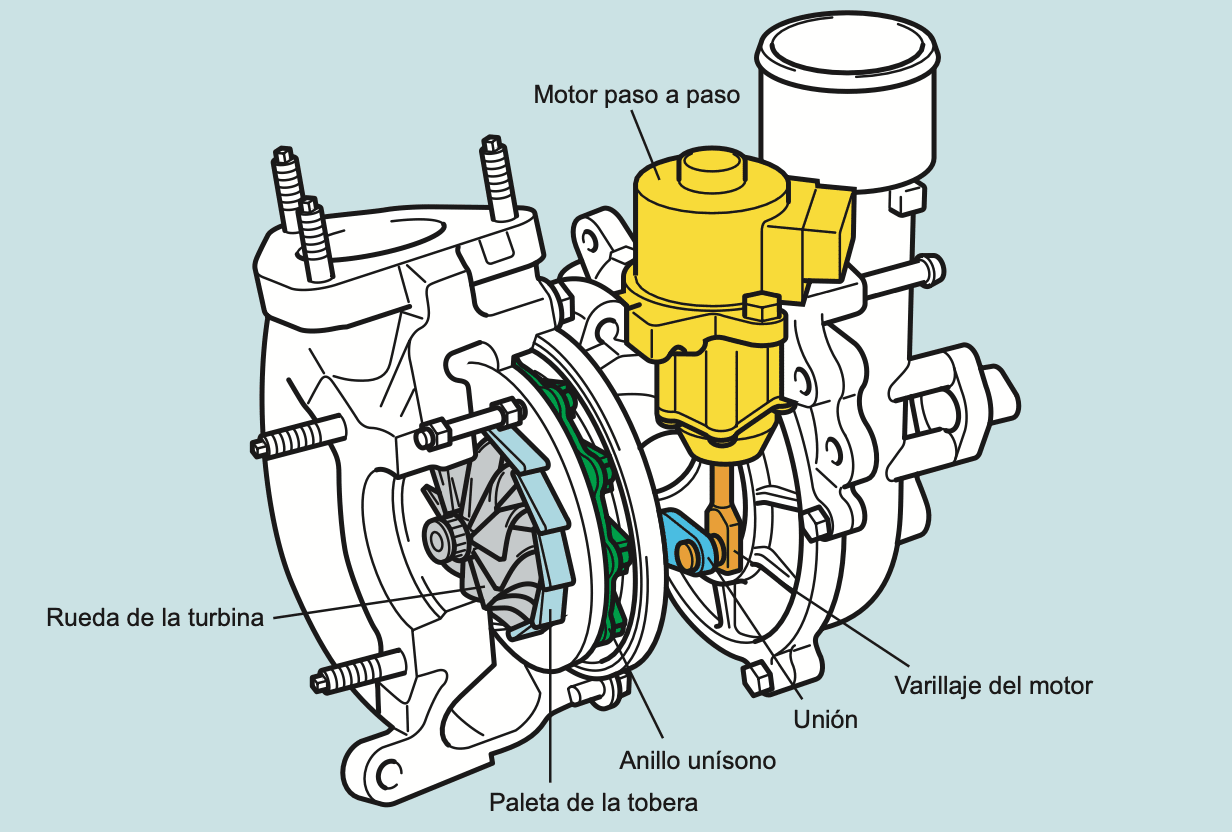

1. What is a variable-vane turbocharger nozzle?
The variable-vane nozzle is a component that adjusts the direction and speed of the exhaust gases passing through the turbocharger. By controlling this gas flow, the vanes let engineers optimize boost pressure according to different driving conditions. This system is electronically controlled by the engine’s ECU, which adjusts the vane angle as needed, improving efficiency under both low-load and high-load conditions.
This intelligent design lets the turbocharger stay efficient across the entire engine RPM range, eliminating the limitations of traditional turbochargers, which tend to be less effective at low speeds.
2. How the variable-vane nozzle works
The operation of the variable-vane nozzle is based on its ability to adjust the opening through which exhaust gases enter the turbocharger. Depending on engine speed and load, the vanes adjust to optimize boost pressure.
2.1 At low speed
When the engine is operating at low speeds, the variable-vane nozzle closes, narrowing the path for exhaust gas. This adjustment increases the speed of the exhaust gas flow heading into the turbine, making the turbine wheel spin faster. This acceleration improves turbocharger response, ramping up boost pressure more quickly.
As a result, the engine produces more power even at low RPM — something that’s hard to achieve in engines with conventional turbochargers, which depend on higher speeds to operate efficiently.
2.2 At high speed / high load
Under high-speed conditions, or when the engine is under heavy load, the variable-vane nozzle opens, allowing a larger volume of exhaust gas to pass through the turbocharger. This changes the direction of the exhaust gas flow, reducing the pressure applied to the turbine.
This adjustment keeps the turbine wheel from spinning at excessive speed, protecting engine components and improving fuel consumption by reducing unnecessary strain on the turbocharger. At the same time, the engine maintains high power output, which is crucial in high-performance applications.
3. Advantages of the variable-vane nozzle
Using a variable-vane nozzle in turbochargers offers multiple benefits that improve overall engine performance, both in terms of power and efficiency.
3.1 Better response across the entire RPM range
One of this system’s main advantages is its ability to deliver better engine response throughout the whole RPM range. At low speed, the variable-vane nozzle ensures the turbocharger operates efficiently, while at high speed or under heavy load, it adjusts gas flow to keep the balance between power and fuel consumption.
3.2 Greater fuel efficiency
By adjusting boost pressure according to driving conditions, the variable-vane system optimizes fuel consumption. Instead of applying constant pressure that could waste energy during low-load moments, the variable vane reduces pressure when it isn’t needed, improving efficiency.
3.3 Engine and turbocharger protection
The fact that the variable vane controls turbine wheel speed also contributes to protecting engine components. Preventing the turbine from spinning at excessive speeds not only improves fuel consumption but also extends the service life of the turbocharger and other critical engine parts.
4. Why is it essential in high-performance engines?
The variable-vane nozzle is a key technology in high-performance engines that need a balance between power and efficiency. Modern vehicles, especially those designed for sport or high-demand applications, require fast response and precise control of boost pressure.
In a world where fuel efficiency and emissions reduction matter more and more, the ability to adjust boost pressure through the variable nozzle ensures engines run optimally without compromising performance. This technology not only increases engine power but also helps meet increasingly strict emissions regulations.
Conclusion
The variable-vane nozzle is a fundamental innovation in modern turbochargers. By controlling the speed and direction of exhaust gas flow, it optimizes boost pressure, improving engine performance at both low and high RPM. Its ability to adjust turbocharger efficiency under different load conditions makes it a key part of high-performance engines. Its contribution to fuel efficiency and engine protection also ensures vehicles can operate at their full potential for longer.
The variable-vane nozzle remains one of the most advanced technologies for optimizing engine performance, delivering a more efficient and powerful driving experience.
